NOJITECH Corporation





You never have to worry about the safety of
your cables

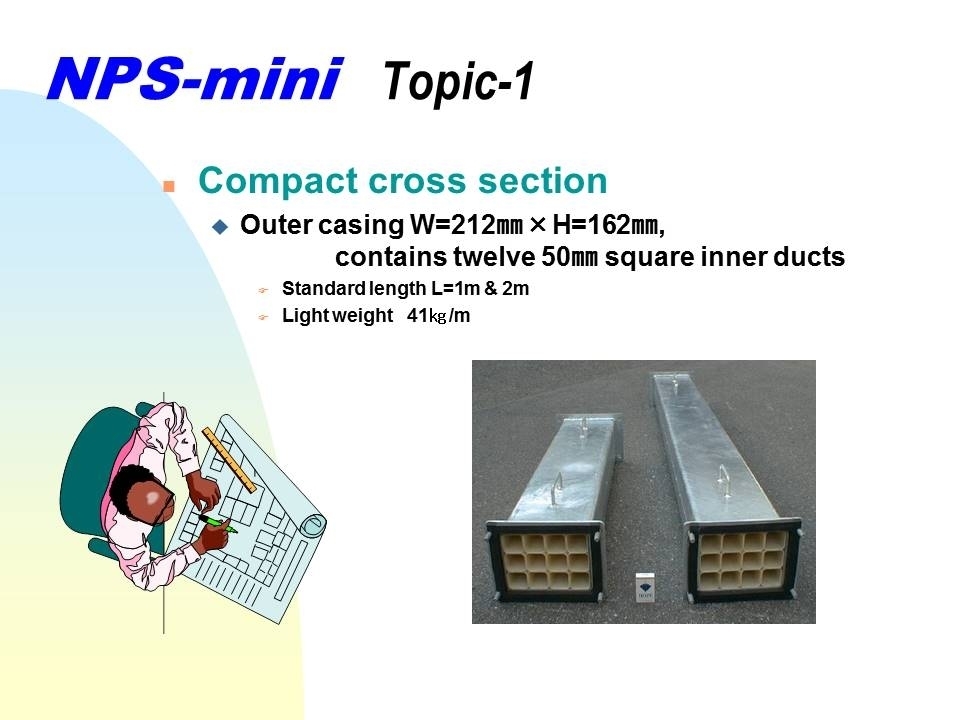

Compact Telecom Cabling Ducts





by　

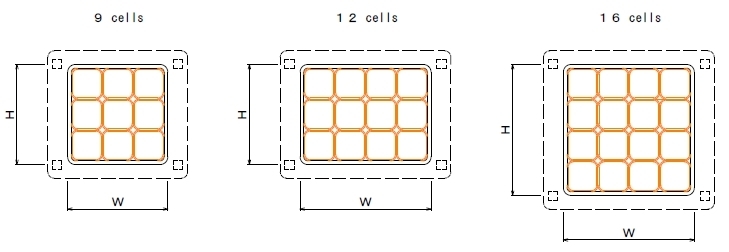

Size of standard units cross-section


Cells
 W:Width
mm
 H:Height
mm
 Length
mm
 Weight
kg/m
9  162 162 500
1000
2000
 36.0
12  212 162 43.0
16  212 212 50.0

Inner pipe･･･50square mm PVC tubes
