NPS-mini is very reliable for any kind of
problems you have.
Quick completion of the installation !!
Route 53 Chizu telecom cabling ducts in Japan
【Spec.】Outer size：212mmW×212mmＨ，Inner tube：NPS-50×16
Contains 16 ducts

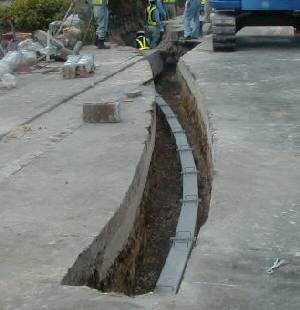

in a narrow
in a narrow
shallow trench
Using NPS-T system, the inside
temperature was under 167 degree F.
Route 57 Unzen telecom cabling ducts in Japan
【Spec.】Outer size：162mmW×162mmH，Inner tube：NPS-50×9

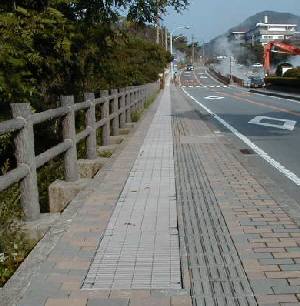

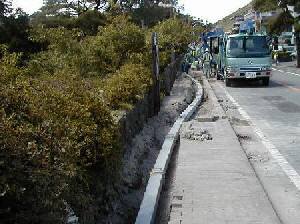

Finished construction
at the hot spring site
at the hot spring site

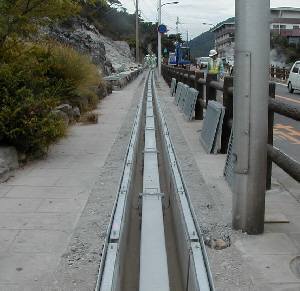

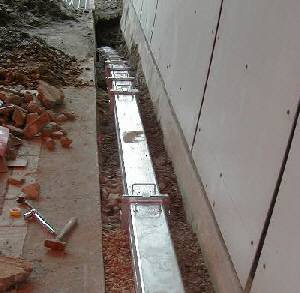

Under construction
at the same site
at the same site

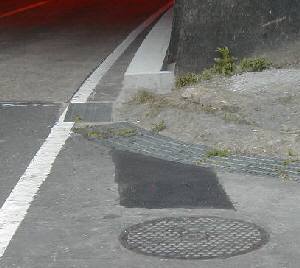

From vehicle road to sidewalk

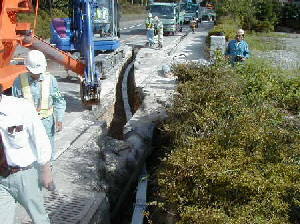

Ease of going through obstacles
Going around an obstacle
with standard 2 m units
with standard 2 m units
10 m max. radius on 500 mm units
Durability and compactness,
useful NPS characteristics

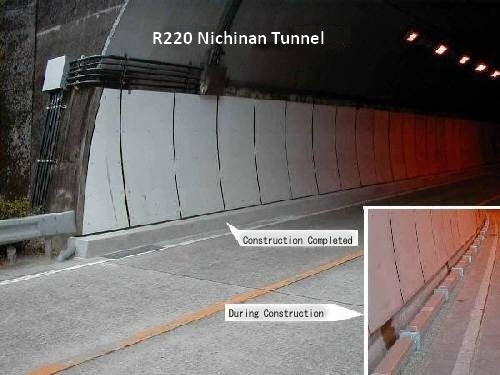

Route 220 Nichinan Tunnel telecom cabling ducts in Japan
【Spec.】Outer size：162mmW×162mmH，Inner tube：NPS-50×9

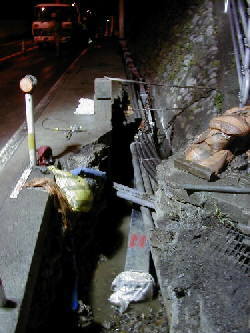

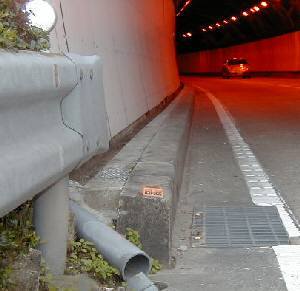

[Before construction]
Needs a small and compact system
in a narrow passage
Needs a small and compact system
in a narrow passage
[Under construction]

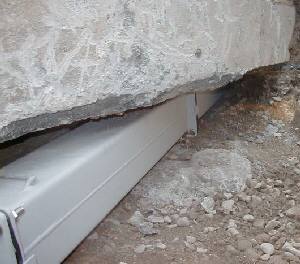

Extending from a hand hole
under a drain pipe
Extending from a hand hole
under a drain pipe
[During installation]
[After construction]
