Light weight fire resistant cable duct system
Let's protect fiber optic cables from fire !

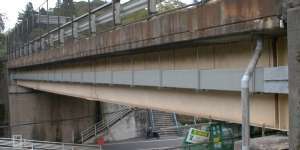

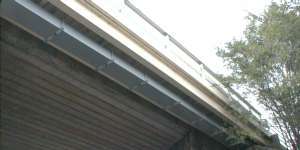

Over a river or in a tunnel
Over a river or in a tunnel
Secure & an Attractive Design
Route 2 Okayama prefecture, Japan
IB-Light 330mmW X 320mmH
Thermal insulation;
120kg/cubicmeter,t=50mm

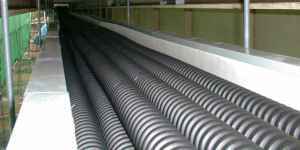

Inner pipe;FEP50φX 10
IB-Light 330mmW X 320mmH
Thermal insulation;
120kg/cubicmeter,t=50mm
Inner pipe;FEP50φX 10
Route 2 Okayama prefecture, Japan
IB-Light 470mmW×250mmH
Thermal insulation;
120㎏/cubic meter,t=50㎜
Inner pipe;FEP50φ×10
IB-Light 470mmW×250mmH
Thermal insulation;
120㎏/cubic meter,t=50㎜
Inner pipe;FEP50φ×10

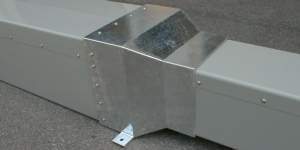

◆ EQUIPPED WITH HIGH QUALITY MATERIALS!
・Thermal insulation is "JFE Rock-Ceram" which has a high efficiency and is earth friendly.
・Exterior is galvanized-aluminum with a standard thickness of 1.0mm
・Each unit is adaptable for a curvature due to its elasticity.

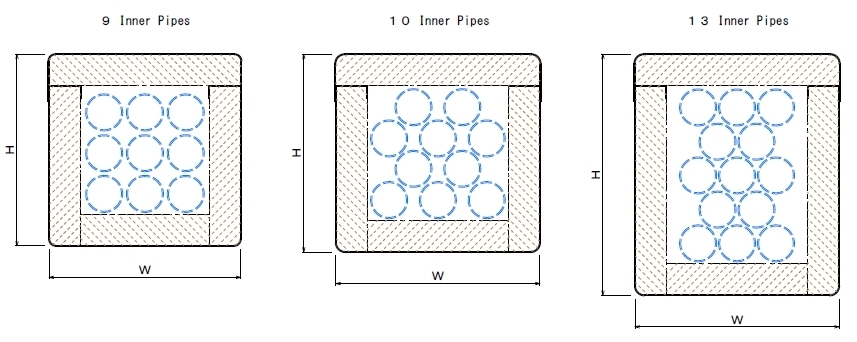

Size of standard units cross-section
Inner Pipes capacity VU-50 |
W:Width mm |
H:Height mm |
Length mm |
Weight kg/m |
9 | 310 | 310 | 900 | 18.8 |
10 | 330 | 320 | 19.9 | |
13 | 330 | 390 | 22.0 |
Insulation:Rock wool 120㎏/m3 t=50㎜
This E-Type is very useful when the need for fire prevention is not necessary.
Light weight and compact,Type-E which has no thermal insulation still
has the high efficiency of IB-Light.
Light weight and compact,Type-E which has no thermal insulation still
has the high efficiency of IB-Light.

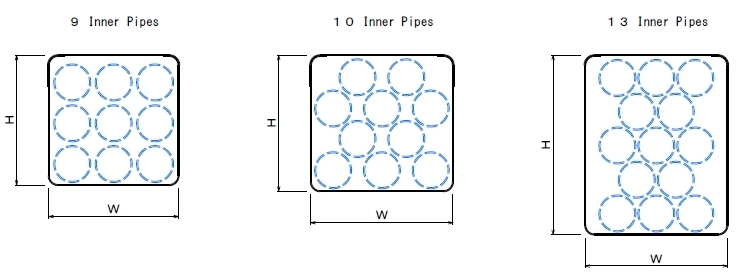

Size of standard units cross-section
Inner Pipes capacity VU-50 |
W:Width mm |
H:Height mm |
Length mm |
Weight kg/m |
9 | 210 | 210 | 900 or 2000 |
8.5 |
10 | 230 | 230 | 9.4 | |
13 | 230 | 300 | 10.5 |
by
Telecom Equipment
Steel Work Equipment
Electrical Equipment
Gopher Series
・Pipe-beam cable bridge
・Light weight fire resistance cable duct
・Compact Telecom cabling ducts
・Next generation cabling system
